Computer Organisation and Architecture - Addressing Modes

Addressing Modes– The term addressing modes refers to the way in which the operand of an instruction is specified. The addressing mode specifies a rule for interpreting or modifying the address field of the instruction before the operand is actually executed.

Addressing modes for 8086 instructions are divided into two categories:

1) Addressing modes for data

2) Addressing modes for branch

The 8086 memory addressing modes provide flexible access to memory, allowing you to easily access variables, arrays, records, pointers, and other complex data types.  The key to good assembly language programming is the proper use of memory addressing modes.

An assembly language program instruction consists of two parts

The memory address of an operand consists of two components:

IMPORTANT TERMS

• Starting address of memory segment.
• Effective address or Offset: An offset is determined by adding any combination of three address elements: displacement, base and index.
  • Displacement: It is an 8 bit or 16 bit immediate value given in the instruction.
  • Base: Contents of base register, BX or BP.
  • Index: Content of index register SI or DI.

According to different ways of specifying an operand by 8086 microprocessor, different addressing modes are used by 8086.

Addressing modes used by 8086 microprocessor are discussed below:

Immediate mode: In immediate addressing the operand is specified in the instruction itself. In this mode the data is 8 bits or 16 bits long and data is the part of instruction.

Example: MOV AL, 35H (move the data 35H into AL register)

Register mode: In register addressing the operand is placed in one of 8 bit or 16 bit general purpose registers. The data is in the register that is specified by the instruction.
Example: MOV AX,CX (move the contents of CX register to AX register)Register Indirect mode: In this addressing the operand’s offset is placed in any one of the registers BX,BP,SI,DI as specified in the instruction. The effective address of the data is in the base register or an index register that is specified by the instruction. The 8086 CPUs let you access memory indirectly through a register using the register indirect addressing modes.

Example: MOV AX, [BX] (move contents of memory location addressed by the register BX to the register AX)

Auto-increment mode: Effective address of the operand is the contents of a register specified in the instruction. After accessing the operand, the contents of this register are automatically incremented to point to the next consecutive memory location.

Auto-decrement mode: Effective address of the operand is the contents of a register specified in the instruction. Before accessing the operand, the contents of this register are automatically decremented to point to the previous consecutive memory location.

Direct mode: The operand’s offset is given in the instruction as an 8 bit or 16 bit displacement element. In this addressing mode the 16 bit effective address of the data is the part of the instruction.

Example: ADD AL, [0301] (add the contents of offset address 0301 to AL)

Base addressing: The operand’s offset is sum of an 8 bit or 16 bit displacement and the contents of the base register BX or BP. BX is used as a base register for data segment, and BP is used as a base register for stack segment.

Example: MOV AL,[BX+05] (suppose reg. BX contain 0301. The offset will be 0301+05=0306. Content of the memory location 0306 will move to AL)

Indexed addressing mode: The operand’s offset is the sum of the content of an index register SI or DI and an 8 bit or 16 bit displacement.

Example: MOV AX, [SI+05]

Base Indexed addressing mode: The operand’s offset is sum of the content of a base register BX or BP and an index register SI or DI.

Example: ADD AX, [BX+SI]

Computer Organisation and Architecture - Machine Instructions

Machine Instructions are commands or programs written in machine code of a machine (computer) that it can recognize and execute.

• A machine instruction consists of several bytes in memory that tells the processor to perform one machine operation.
• The processor looks at machine instructions in main memory one after another, and performs one machine operation for each machine instruction.
• The collection of machine instructions in main memory is called a machine language program.

Machine code or machine language is a set of instructions executed directly by a computer’s central processing unit (CPU). Each instruction performs a very specific task, such as a load, a jump, or an ALU operation on a unit of data in a CPU register or memory. Every program directly executed by a CPU is made up of a series of such instructions.

The general format of a machine instruction is

[Label:]                 Mnemonic      [Operand, Operand]                  [;Comments]

• Brackets indicate that a field is optional
• Label is an identifier that is assigned the address of the first byte of the instruction in which it appears. It must be followed by “:”
• Inclusion of spaces is arbitrary, except that at least one space must be inserted; no space would lead to an ambiguity.
• Comment field begins with a semicolon “ ; ”

Example:

Pointing:                 MOV      R5, #25H                 ;load 25H into R5

Machine instructions used in 8086 microprocessor

1. Data transfer instructions– move, load exchange, input, output.

• MOV :Move byte or word to register or memory .
• IN, OUT: Input byte or word from port, output word to port.
• LEA: Load effective address
• LDS, LES Load pointer using data segment, extra segment .
• PUSH, POP: Push word onto stack, pop word off stack.
• XCHG: Exchange byte or word.
• XLAT: Translate byte using look-up table.

2. Arithmetic instructions – add, subtract, increment, decrement, convert byte/word and compare.

• ADD, SUB: Add, subtract byte or word
• ADC, SBB :Add, subtract byte or word and carry (borrow).
• INC, DEC: Increment, decrement byte or word.
• NEG: Negate byte or word   (two’s complement).
• CMP: Compare byte or word (subtract without storing).
• MUL, DIV: Multiply, divide byte or word (unsigned).
• IMUL, IDIV: Integer multiply, divide byte or word (signed)
• CBW, CWD: Convert byte to word, word to double word
• AAA, AAS, AAM,AAD: ASCII adjust for add, sub,  mul, div .
• DAA, DAS: Decimal adjust for addition, subtraction (BCD numbers)

3. Logic instructions – AND, OR, exclusive OR, shift/rotate and test

• NOT :   Logical NOT of byte or word (one’s complement)
• AND:  Logical AND of byte or word
• OR: Logical OR of byte or word.
• XOR: Logical exclusive-OR of byte or word
• TEST: Test byte or word (AND without storing).
• Shift, rotate instruction- SHL, SHR Logical shift left, right byte or word? by 1or CL
• SAL, SAR Arithmetic shift left, right byte or word? by 1 or CL
• ROL, ROR Rotate left, right byte or word? by 1 or CL .
• RCL,  RCR Rotate left, right through carry byte or word? by 1 or CL.

4. String manipulation instruction – load, store, move, compare and scan for byte/word

• MOVS: Move byte or word string
• MOVSB, MOVSW: Move byte, word string.
• CMPS:  Compare byte or word string.
• SCAS S: can byte or word string (comparing to A or AX)
• LODS, STOS:  Load, store byte or word string to AL.

5. Control transfer instructions – conditional, unconditional, call subroutine and return from subroutine.

• JMP:Unconditional jump .it includes loop transfer and subroutine and interrupt instructions.

 6. Loop control instructions-

•  LOOP: Loop unconditional, count in CX, short jump to target address.
• LOOPE (LOOPZ): Loop if equal (zero), count in CX, short jump to target address.
• LOOPNE (LOOPNZ): Loop if not equal (not zero), count in CX, short jump to target address.
• JCXZ: Jump if CX equals zero (used to skip code in loop).
• Subroutine and Intrrupt instructions-
• CALL, RET:  Call, return from procedure (inside or outside current segment).
• INT, INTO:  Software interrupt, interrupt if overflow.IRET: Return from interrupt.

7. Processor control instructions-

Flag manipulation:

• STC, CLC, CMC:  Set, clear, complement carry flag.
• STD, CLD:  Set, clear direction flag.STI, CLI: Set, clear interrupt enable flag.
• PUSHF, POPF: Push flags onto stack, pop flags off stack.

Computer Networking - Congestion Control

Congestion is a state occurring in network layer when the message traffic is so heavy that it slows down network response time. Effects of Congestion are as follows -

1. As delay increases, performance decreases.

2. If delay increases, retransmission occurs, making situation worse.

Congestion Control Algorithms -

1. Leaky Bucket Algorithm

2. Token Bucket Algorithm

Leaky Bucket Algorithm

Let us consider an example to understand

Imagine a bucket with a small hole in the bottom.No matter at what rate water enters the bucket, the outflow is at constant rate.When the bucket is full with water additional water entering spills over the sides and is lost.

Similarly, each network interface contains a leaky bucket and the following steps are involved in leaky bucket algorithm:

1.  When host wants to send packet, packet is thrown into the bucket.
2.  The bucket leaks at a constant rate, meaning the network interface transmits packets at a constant rate.
3.  Bursty traffic is converted to a uniform traffic by the leaky bucket.
4. In practice the bucket is a finite queue that outputs at a finite rate.

Token Bucket Algorithm

Need of token bucket Algorithm:-

The leaky bucket algorithm enforces output pattern at the average rate, no matter how bursty the traffic is. So in order to deal with the bursty traffic we need a flexible algorithm so that the data is not lost. One such algorithm is token bucket algorithm.

Steps of this algorithm can be described as follows:

1. In regular intervals tokens are thrown into the bucket.
2. The bucket has a maximum capacity.
3. If there is a ready packet, a token is removed from the bucket, and the packet is send.
4. If there is no token in the bucket, the packet cannot be send.

Let’s understand with an example,

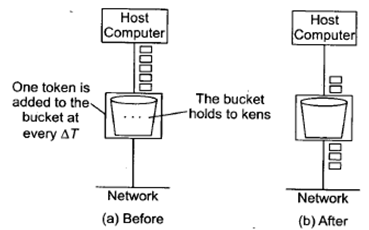

In figure (A) we see a bucket holding three tokens, with five packets waiting to be transmitted.For a packet to be transmitted, it must capture and destroy one token. In figure (B) We see that three of the five packets have gotten through, but the other two are stuck waiting for more tokens to be generated.

Computer Networking - Error Detection during data transmission

Error is a condition when the receiver’s information does not match with the sender’s information. During transmission, digital signals suffer from noise that can introduce errors in the binary bits travelling from sender to receiver. That means a 0 bit may change to 1 or a 1 bit may change to 0

Whenever a message is transmitted, it may get scrambled by noise or data may get corrupted. To avoid this, we use error-detecting codes which are additional data added to a given digital message to help us detect if any error has occurred during transmission of the message. Error detecting codes are implemented either at Data Link Layer or Transport Layer of OSI Model. Basic approach used for error detection is the use of redundancy bits, where additional bits are added to facilitate detection of errors.

Some popular techniques for error detection are:
1. Simple Parity check
2. Two-dimensional Parity check
3. Checksum
4. Cyclic redundancy check

1. Simple Parity check
Blocks of data from the source are subjected to a check bit or parity bit generator form, where a parity of :

• 1 is added to the block if it contains odd number of 1’s, and
• 0 is added if it contains even number of 1’s

This scheme makes the total number of 1’s even, that is why it is called even parity checking.

2. Two-dimensional Parity check
Parity check bits are calculated for each row, which is equivalent to a simple parity check bit. Parity check bits are also calculated for all columns, then both are sent along with the data. At the receiving end, these are compared with the parity bits calculated on the received data.

3. Checksum

• In checksum error detection scheme, the data is divided into k segments each of m bits.
• In the sender’s end the segments are added using 1’s complement arithmetic to get the sum. The sum is complemented to get the checksum.
• The checksum segment is sent along with the data segments.
• At the receiver’s end, all received segments are added using 1’s complement arithmetic to get the sum. The sum is complemented.
• If the result is zero, the received data is accepted; otherwise discarded.

4. Cyclic redundancy check (CRC)

• Unlike checksum scheme, which is based on addition, CRC is based on binary division.
• In CRC, a sequence of redundant bits, called cyclic redundancy check bits, are appended to the end of data unit so that the resulting data unit becomes exactly divisible by a second, predetermined binary number.
• At the destination, the incoming data unit is divided by the same number. If at this step there is no remainder, the data unit is assumed to be correct and is therefore accepted.
• A remainder indicates that the data unit has been damaged in transit and therefore must be rejected.

Computer Networking - IP Addressing

IP address is an address having information about how to reach a specific host, especially outside the LAN. An IP address is a 32 bit unique address having an address space of 232.

Generally, there are two notations in which IP address is written, dotted decimal notation and hexadecimal notation.

Dotted Decimal Notation

Hexadecimal Notation

Some points to be noted about dotted decimal notation :

1. The value of any segment (byte) is between 0 and 255 (both included).

2. There are no zeroes preceding the value in any segment (054 is wrong, 54 is correct).

Classful Addressing

The 32 bit IP address is divided into five sub-classes. There are two notations for classful addressing, binary notation and decimal notation.

Binary Notation

Example : Find the class of the address 11000001 10000011 00011011 11111111

Solution : The first two bits of the given address are 1, and the third bit is 0. Therefore, it is a class C address.

Decimal Notation

Example : Find the class of the address 227.12.14.87

Solution : The first byte is 227, which is between 224 and 239, and thus, the given address is a class D address.

Net ID and Host ID

Net ID is the part of the IP address that identifies the network; and Host ID is the part of the IP address that identifies the host on the network.

Problems with Classful Addressing:

The problem with this classful addressing method is that millions of class A address are wasted, many of the class B address are wasted, whereas, number of addresses available in class C is so small that it cannot cater the needs of organizations. Class D addresses are used for multicast routing, and are therefore available as a single block only. Class E addresses are reserved.

Because of these problems, Classful networking was replaced by Classless Inter-Domain Routing (CIDR) in 1993. And to discuss it properly let us first understand Network Address, Mask and Subnetting.

Network address - It identifies a network on internet.  Using this, we can find range of addresses in the network and total possible number of hosts in the network.

Mask - It is a 32-bit binary number that gives the network address in the address block when AND operation is bitwise applied on the mask and any IP address of the block.

The default mask in different classes are :

Class A – 255.0.0.0

Class B – 255.255.0.0

Class C – 255.255.255.0

Example : Given IP address 132.6.17.85 and default class B mask, find the beginning address (network address).

Solution : The default mask is 255.255.0.0, which means that the only the first 2 bytes are preserved and the other 2 bytes are set to 0. Therefore, the network address is 132.6.0.0.

Subnetting - Dividing a large block of addresses into several contiguous sub-blocks and assigning these sub-blocks to different smaller networks is called subnetting. It is a practice that is widely used when classless addressing is done.

Classless Addressing

To reduce the wastage of IP addresses in a block, we use sub-netting. What we do is that we use host id bits as net id bits of a classful IP address. We give the IP address and define the number of bits for mask along with it (usually followed by a ‘/’ symbol), like, 192.168.1.1/28. Here, subnet mask is found by putting the given number of bits out of 32 as 1, like, in the given address, we need to put 28 out of 32 bits as 1 and the rest as 0, and so, the subnet mask would be 255.255.255.240.

Some values calculated in subnetting :

1. Number of subnets : Given bits for mask – No. of bits in default mask

2. Subnet address : AND result of subnet mask and the given IP address

3. Broadcast address : By putting the host bits as 1 and retaining the network bits as in the IP address

4. Number of hosts per subnet : 2(32 – Given bits for mask) – 2

5. First Host ID : Subnet address + 1 (adding one to the binary representation of the subnet address)

6. Last Host ID : Subnet address + Number of Hosts

Example : Given IP Address – 172.16.0.0/25, find the number of subnets and the number of hosts per subnet. Also, for the first subnet block, find the subnet address, first host ID, last host ID and broadcast address.

Solution : This is a class B address. So, no. of subnets = 2(25-16) = 29 = 512.

No. of hosts per subnet = 2(32-25) – 2 = 27 – 2 = 128 – 2 = 126

For the first subnet block, we have subnet address = 0.0, first host id = 0.1, last host id = 0.126 and broadcast address = 0.127
